Discuss the application of ASME flange in detail

ASME flanges have been a popular choice for various industries due to their superior quality, high-temperature resistance, and excellent sealing properties. At YANHAO, we are passionate about providing our clients with the best quality ASME flanges in the market. We have a dedicated team of experts who specialize in the manufacturing of ASME flanges that are dependable, durable, and built to last. In this blog, we will dive deeper into the application of ASME flanges, their specific features, and manufacturing processes, and examine their range of use in different industries. Let’s explore the world of ASME flanges together!

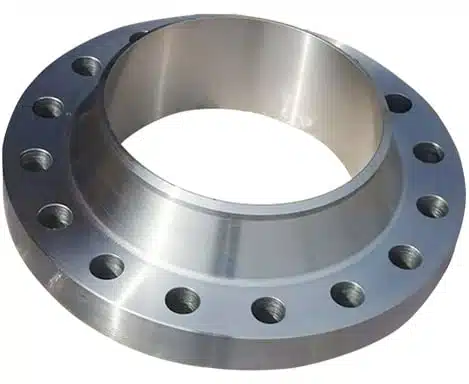

About ASME Flanges

ASME, or the American Society of Mechanical Engineers, has developed various standards for manufacturing processes and products, including flanges. ASME flanges are engineered to properly connect pipes, valves, and other equipment in piping systems. They are usually round or square-shaped with multiple bolt holes used to secure them to other flanges or piping components.

ASME flanges are widely used in different industries, such as chemical, oil and gas, pharmaceutical, food processing, and many others. They provide excellent flexibility and strength to piping systems, allowing for easy assembly and disassembly of various components, facilitating maintenance, and increasing system efficiency.

The history of ASME flanges dates back to the early 1900s when the American Society of Mechanical Engineers (ASME) set up a committee on the standardization of flanges. This led to the creation of a standard flange size in 1917 and later the development of the ASME boiler and pressure vessel codes in the 1920s. Since then, ASME flanges have undergone numerous advancements and improvements resulting in their wide usage across various industries.

In summary, ASME flanges are vital components in piping systems that offer strength, flexibility, and efficiency, making them a top choice for different industries.

ASME flange specifications

ASME flanges are available in different specifications depending on the application. Some of the key specifications include:

1. Size: ASME flanges are available in various sizes, ranging from 1/2 inch to more than 100 inches. The size of a flange is typically determined by the size of the pipe and the rate of flow.
2. Pressure rating: ASME flanges come in different pressure ratings, which typically range from 150 pounds per square inch (PSI) to 2500 PSI. The pressure rating is determined by the thickness of the flange and the material used.
3. Material: ASME flanges can be made from a wide range of materials, such as stainless steel, carbon steel, alloy steel, and nickel alloys. The material used depends on various factors such as chemical compatibility, temperature, and pressure.
4. Facing Type: ASME flanges come in several face types, such as raised face (RF), flat face (FF), and ring-type joint (RTJ). The facing type used depends on the application and the type of gasket required.
5. Bolting Pattern: ASME flanges are designed with different bolting patterns, such as slip-on, threaded, weld neck, and blind.

In summary, ASME flanges have specific specifications depending on the application. These specifications include size, pressure rating, material, facing type, and bolting pattern. Knowing the right specifications for your application is critical in ensuring optimal performance and reliability.

Characteristics of ASME flanges

ASME flanges have several unique features that set them apart from other types of flanges. Here are some of their key characteristics:

1. High-temperature resistance: ASME flanges are designed to withstand high temperatures, making them suitable for use in high-temperature applications. ASME flanges are made from high-temperature resistant materials, such as stainless steel and alloy steel, which can withstand temperatures up to 1000°C.
2. Shock resistance: ASME flanges are designed to withstand shocks and vibrations without losing their integrity. This makes them an ideal choice for applications where there may be frequent flow fluctuations or usage of heavy equipment that can cause vibration.
3. Excellent sealing characteristics: ASME flanges provide an excellent seal to prevent leaks and are ideal for use in critical applications where the leakage is not an option. The design of ASME flanges includes a gasket between the two flange faces, which is compressed during the bolting process to create a tight seal.
4. Strength and durability: ASME flanges are designed to be strong and durable, capable of withstanding high-pressure and heavy loads. They are made from high-quality materials and engineered for long-term endurance during extended periods of service.
5. Assembly and disassembly: ASME flanges are designed for easy assembly and disassembly, which makes them an ideal choice for maintenance and repair operations.

In summary, ASME flanges offer high-temperature resistance, shock resistance, excellent sealing characteristics, strength, and durability. These unique features make ASME flanges ideal for various applications, especially those with critical service conditions.

ASME flange manufacturing process

The manufacturing process for ASME flanges involves several steps to ensure they meet the required specifications. The following is an outline of the specific manufacturing processes and techniques used to produce ASME flanges:

1. Material selection: The first step in the manufacturing process is to select the appropriate material for the ASME flange. Typically, materials like stainless steel, carbon steel, and alloy steel are used.
2. Cutting: The selected material is cut into the required shape and size using a variety of techniques like shearing, sawing, or plasma cutting.
3. Forming: The cut material is then bent or shaped into the required flange shape by either hot or cold forging. The shape is formed using massive presses or hydraulic hammers.
4. Heat treatment: The formed flange is then heat-treated to change its physical properties. The process involves heating the flange to a specific temperature and cooling it rapidly to harden it or slowly to soften it.
5. Machining: The heat-treated flange is then machined to create the bolt holes, flange face, and any other required features. This process is carried out using computer-controlled machines like lathes, milling machines, and drilling machines.
6. Surface treatment: The machined flange is then surface treated to improve its corrosion resistance and appearance. The treatment can be done through methods like sandblasting, pickling, and electroplating.
7. Quality control: The final step is to carry out a series of quality control checks to ensure that the ASME flange meets the required specifications. These checks typically include visual inspections, dimensional checks, and non-destructive testing.

In summary, the production of an ASME flange involves several steps, including material selection, cutting, forming, heat treatment, machining, surface treatment, and quality control. By following these specific processes, manufacturers can produce high-quality, durable, and reliable ASME flanges.

Application of ASME flanges in various industries

ASME flanges find extensive application in various industries, including chemical, pharmaceutical, food processing, oil and gas, and power generation, among others. Here are some case studies that showcase how ASME flanges are used in different industries.

1. Chemical Industry: ASME flanges are widely used in the chemical industry for fluid handling applications. A chemical plant needed to replace the flanges in their distillation tower due to corrosion. The plant opted for ASME flanges made from Hastelloy, a high-performance, corrosion-resistant alloy made of nickel and molybdenum. The use of ASME flanges helped to reduce the chances of corrosion and leaks, leading to safer, more reliable operations.
2. Pharmaceutical Industry: The pharmaceutical industry requires high levels of sanitation and cleanliness in its processes. ASME flanges made from stainless steel are commonly used in this industry due to their corrosion-resistant properties and ease of cleaning. In one application, an ASME flange was used in the manufacturing of a vaccine. The vaccine required precise temperatures to be maintained, and the ASME flange was crucial in maintaining a tight seal and preventing any breaches and contamination.
3. Food processing Industry: The food processing industry also requires high levels of cleanliness and sanitation. ASME flanges made from stainless steel are preferred over flanges made from carbon steel. In one application, a food processing plant used ASME flanges to connect pipes carrying a viscous liquid. The ASME flanges provided a superior seal, which helped to avoid leaks and contamination.
4. Oil and Gas Industry: ASME flanges are widely used in the oil and gas industry for the connection of pipelines, valves, and other equipment. In one application, an oil rig required ASME flanges capable of withstanding high-pressure and high-temperature conditions. The ASME flanges used in the application were made from alloy steel, which provided excellent corrosion and wear resistance while maintaining tight seals under extreme conditions.

In summary, ASME flanges find broad application in various industries such as chemical, pharmaceutical, food processing, and oil and gas due to their strength, flexibility, and reliability. Case studies show how ASME flanges help ensure safe, reliable, and efficient operations in these industries.

How to select the right ASME flange

Selecting the right ASME flange is essential for the safe and reliable operation of piping systems. Here are some guidelines for selecting the appropriate ASME flange for a particular application:

1. Material: The first consideration in selecting an ASME flange is the material. The material should be compatible with the fluid being transported, resistant to corrosion, and have suitable mechanical properties for the application. Common materials used include stainless steel, carbon steel, and alloy steel.
2. Diameter: The diameter of the ASME flange should be the same as the pipe to which it will be connected. Selecting a flange with a smaller diameter may lead to increased resistance to flow and pressure drop, while a larger diameter flange than required may result in increased costs.
3. Pressure rating: The pressure rating of the ASME flange should be sufficient for the operating pressure of the fluid being transported. The pressure rating can be determined by considering the design pressure, temperature, and fluid properties. It is essential to select a flange with a pressure rating that meets the highest anticipated pressure during operation.
4. Temperature: The temperature range of the ASME flange should be considered. Different materials have different temperature limits, and it is important to select a flange that can withstand the temperature extremes of the fluid being transported.
5. Flange face: The selection of the type of flange face is critical to ensure proper sealing. The most common types of flange faces are flat faces, raised faces, and ring-type joint faces. The selection of the flange face should take into account the pressure and temperature of the fluid, the need for gasket compression, and the potential for flange rotation.
6. Application: The specific application of the piping system should also be taken into consideration. Applications in industries like pharmaceutical, food processing, or chemical processing may require different materials, gaskets, and flange face designs than other industries.

In summary, selecting the right ASME flange involves considering the material, diameter, pressure rating, temperature, flange face, and the specific application of the piping system. Specifications like ASME B16.5 or B16.47 provide guidelines for selecting appropriate ASME flanges for different applications. It is essential to choose the correct ASME flange to ensure the safe and reliable operation of the piping system.

Recommend Yanhao Company

Yanho is one of the largest manufacturers of ASME flanges in China, with over 10 years of experience. There are several advantages to selecting Yanho as your ASME flange manufacturer:

1. Multiple options: Yanho provides various materials and specifications of ASME flanges that satisfy the demands of different industries and applications.
2. High quality: Yanho manufactures ASME flanges using high-quality raw materials and modern equipment, ensuring the products are durable and reliable. Yanho’s engineers prioritize quality management and production control to ensure the flanges produced to meet industry standards.
3. Advanced technology: Yanho has modern factories equipped with state-of-the-art technology such as CNC machines, CNC folding lines, plasma cutters, and laser cutters. These technologies ensure the accuracy and precision of ASME flange manufacturing while increasing production efficiency.
4. Responsive: Yanho has an efficient supply chain system and quick logistical management, ensuring customer demands are met in a timely manner.
5. Customer service: Yanho prioritizes customer service, providing professional technical advice, and support during sales and after-sales services.

Yanho is a reliable choice for manufacturers seeking quality and affordable ASME flanges. Yanho offers multiple options, high quality, advanced technology, responsive logistics, and excellent customer service.

ASME flanges have several advantages, making them a popular choice for connecting pipes in various industries. They provide a leak-tight seal that helps to prevent spills and leaks while ensuring the safe and efficient transfer of fluids in piping systems. ASME flanges can handle high-pressure and high-temperature conditions and are available in a range of materials and sizes to suit specific applications. They are also highly customizable, enabling their use in various piping configurations.

However, ASME flanges also have a few disadvantages. They are relatively expensive compared to other methods of connecting pipes, and installation and maintenance can be time-consuming and require specialized skills. The selection of the appropriate size, type, and material of flange can also be challenging due to the diverse options available.

Future trends in ASME flanges are expected to focus on material advancements, increased customization, and improved installation and maintenance techniques. New materials will be introduced to better suit the demands of different industries and applications. Optimization techniques and advanced manufacturing processes will also make ASME flanges faster and more efficient to install and maintain, reducing costs and improving safety.

In conclusion, ASME flanges are crucial components in piping systems and are popular in various industries due to their strength, reliability, and leak-tight seal. Despite some disadvantages, ASME flanges are expected to continue as the preferred technology in connecting pipes in many industries in the future.
